Wiring Diagram Racelogic Traction Control

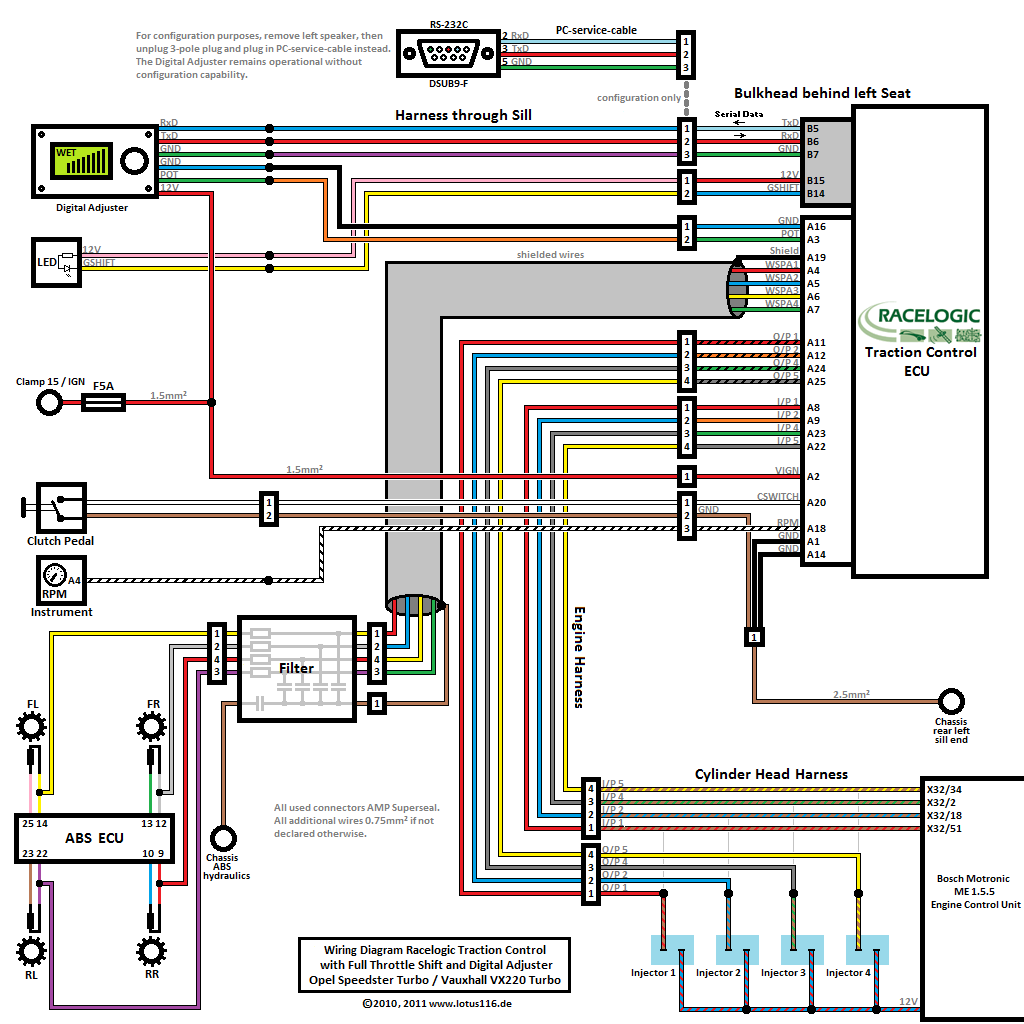

This is the complete wiring diagram you need to implement the Racelogic Traction Control with Full Throttle Shift and Digital Adjuster into a VX220 Turbo. It's basically identical implementing it into a N/A or even a Lotus Elise or Exige, just the connections to the injection valves may be a bit different.
