37 replies to this topic

[JayK]

Been looking on www.eliseparts.com and they do a Harness bar for an S2 for 111 GBP. Thinking of getting it but just wondering if anyone has put wrap round harnesses on standard seats and cut through the standard seat? How much modifying do they need? Cheers Jay

[VIX]

Hi JayK,

You need to do a search for this. There's a long thread/discussion/argument I think between barrybethel and thorney on the merits and safety of using harnesses with the standard seat.

Frogman/Tadpole on this site also offer seat cut-out conversions. See [HERE].

[speedyK]

Harness bar for an S2 for 111 GBP.

Won't fit unless you are prepared to do more work. Elise bolt-ons foul the VX speakers.

wrap round harnesses on standard seats and cut through the standard seat?

Yep, this has been done in the UK and Germany. If you do a search, put in Frogman or Tadpole as a member posting about it – not that expensive either, IIRC.


Edit: !!! VIX sneaked that reply in whilst I was still composing mine.

Edited by speedyK, 10 March 2005 - 07:14 PM.

[Foxy]

Harness bar for an S2 for 111 GBP.

Won't fit unless you are prepared to do more work. Elise bolt-ons foul the VX speakers.

Geofflowe seemed to manage OK...

edit - ahh...i remember now - he modded the bar in some way i think.

Edited by Foxy, 10 March 2005 - 07:58 PM.

[Marco Polo]

Last month I put a Moto-Concept bar in my VX...

I had a look at Elise's bar first (as we have many Elise in the 1-11 club), but none were a straight fit (there is no bolt thread in the VX's rollbar, Elise has them )...

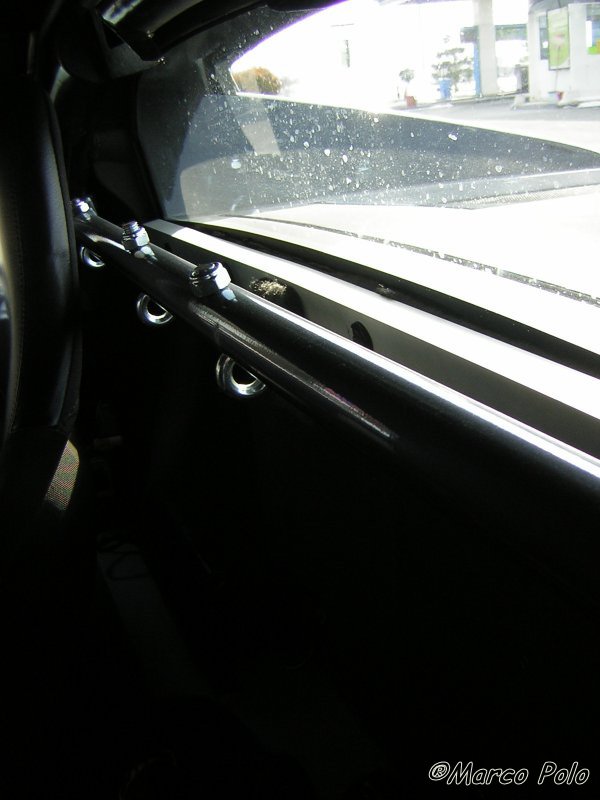

Here it is :

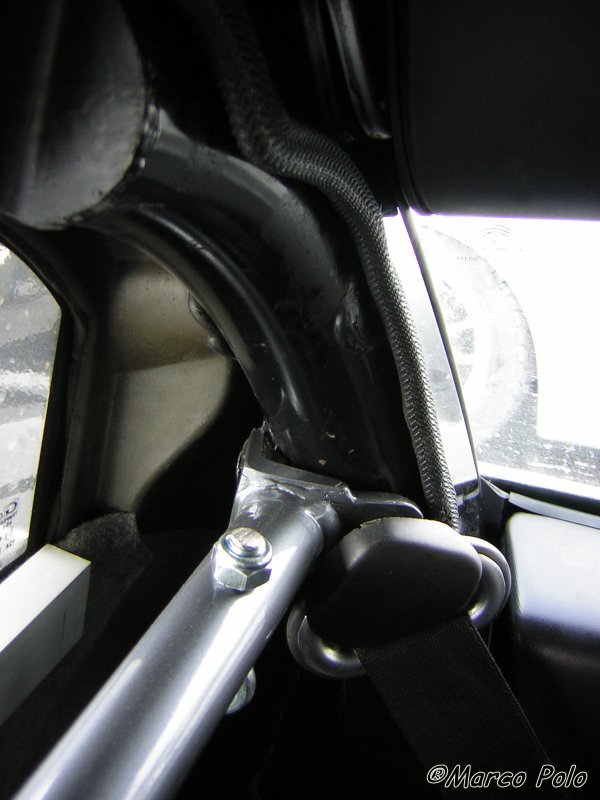

Close up (here is left side) :

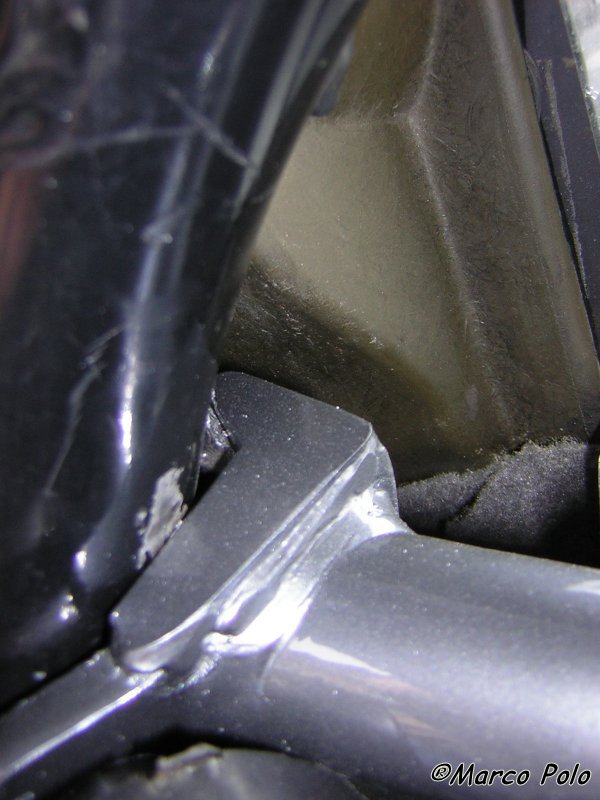

In fact the bar as been slightly modified at its ends (to avoid rotation) by welding a "L" shaped plate (here is right side) :


(Note: the bar was 3-4 mm too short !!!)

As for the harnest, it is not warp round the bar as you then must* cut out the seats and my body size doesn't made this possible (too tall). I just used "oeillets" (in french, doesn't know the word in english ). The bar was a apin in the *ss to drill...

When the work was finished (welding, drilling) the bar was painted to a nicer color than the original !
Many thanks to the body shop owner where everything was done...


* a lot of discussions have been made on this, search for some other threads

Edit:
(Note 2 : my VX is modified : no more stuff behind the seats )

Edited by Marco Polo, 10 March 2005 - 09:04 PM.

[geofflowe]

Geofflowe seemed to manage OK...

edit - ahh...i remember now - he modded the bar in some way i think.

Foxy, that's correct, it was chopped at each end then made to suit.

[Robski]

IIRC Thorney is in the process of sorting a vx harness bar out. I'm sure someone will correct me if I'm wrong but I believe there have been a load of issues due to 'not insubstantial variation in manufacturing tolerences' in the construction of the vx roll bar.

[JayK]

right will investigate, marco where did you get yours from? Im going to nip down and see cobra seats (same area as me) and know the owner very well!

[Marco Polo]

Here : Moto-Concept

It seems they have a new bar (as mine doesn't look the same) : Harness bar

Oh, by the way look at that : Filter

[Thorney]

Harness bars are reasonably easy to sort, just hack up an S2 one, but it needs fitting into the car on a car by car basis which is a PITA for most people. We've developed a simple bolt in version but they've not arrived as yet.

[The Knobs]

any news on bars yet? will it use bolt on harnesses, as i understand that when using bolted ones the standard seats can be used safely?

[stevevx220]

[The Knobs]

[stevevx220]

[The Knobs]

looks like no news then

[stevevx220]

looks like no news then

[skogshuggarn]

Harness bars are reasonably easy to sort, just hack up an S2 one, but it needs fitting into the car on a car by car basis which is a PITA for most people. We've developed a simple bolt in version but they've not arrived as yet.

Thorney, any update about harness bars yet???

[Thorney]

The hard thing is the legal bit. I've sorted a harness bar but to supply one means a pretty high level of liability insurance (I'm not sure if other suppliers have this, I would hope they do). I have £2m of PL cover but am sorting £10m of cover to supply 'safety' equipment which a harness bar comes under. I'm sorting it soon.

[skogshuggarn]

Would insurancecompanys like it better if everyone wanting a harnessbar and race harness would bould it them selfs??? (thinking about building one myself, but would rather buy a new one that fitts)

[Thorney]

The issue is a lot more complicated than that I'm afraid. If you have one fitted, are the fitters qualified to install safety equipment into the car? Has the bar been tested to crash protection levels? What material is a it made from? Has the angle been measured correctly with harness's? What harness have been installed? Are they correct for the car? All these apply to all the parts I've developed and for the most part the maunfacturers indemnify me as a retailer by their own internal risk assessment (Oz, AP etc all cover their own parts). However, I've yet to find a supplier who will say (legally) that they will stand by their harness bar in the event of an accident. Personally that scared me enough to look into it further and hence this is the delay. Look at it this way, if you came up with a harness bar and it sheered in the event of an accident and someone died due to you making it for sale what would YOU do? I'm not about to risk everything to rush a product out into the market so I can make £20 a go. I'm not saying what is out there is dangerous (I use one myself) but if they won't stand by the product (legally) then more needs to be done before I'll supply it.
